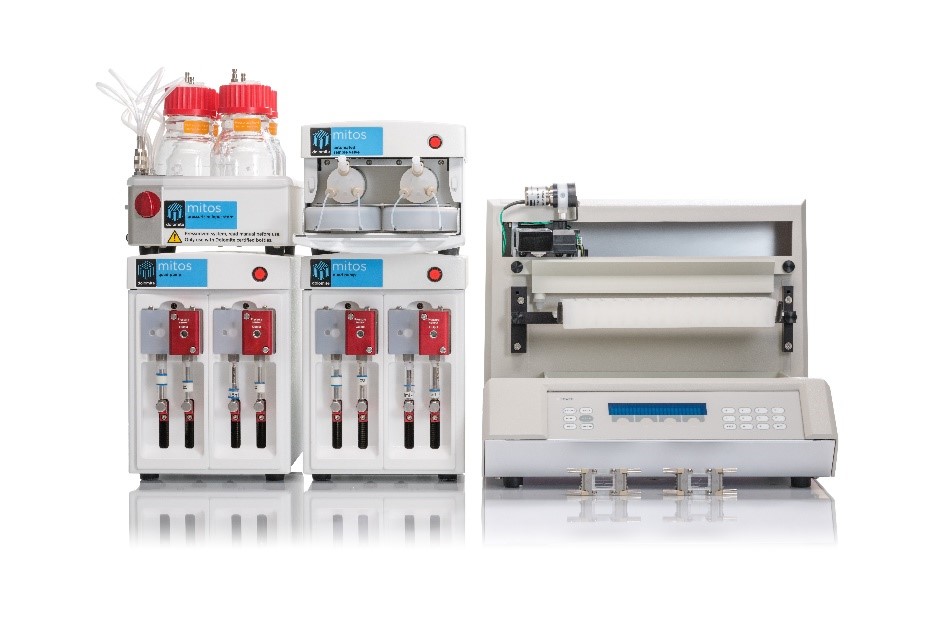

SYSTEM Automated Nanoparticle System

제품설명

Specifications


Operating Pressure 0 – 10 bar

Flow Rate Ratio Up to 1:10

Recommended System Flow Rate Range 0.1 - 15 ml/min (chip dependent)

Fluidic Port Sizes ¼”-28, 10-32 and Luer Fittings

Sample Loop sizes 1, 5 and 10 ml

System Dimensions (H) 60 cm x (W) 90 cm x (D) 60 cm as pictured

Module Weight 60 kg

Maximum Collection Volume Rack Code 24 can collect 14 x 20 ml (28 x 60 mm scintillation vials)

Minimum Collection Volume Rack Code 15 can collect 0.3 ml (96-well microplate)

Voltage Input 100 V – 240 V AC, 50-60 Hz

Current Rating See module datasheets

Working Temperature Range (external) 5 - 40 °C

Maximum Relative Humidity 80 %

Communication USB by FCC

Pressurized Fluid Store Wetted Materials Glass, PTFE, ETFE and polypropylen

Quad Pump Wetted Materials Glass and PTFE, PCTFE, hastelloy and FFKM (white seal)

Automated Sample Valve Wetted Materials PCTFE, CTFE & PTFE

Chip and Connector Wetted Materials FKM, FFKM, glass

Automated Collector Wetted Materials Glass, PTFE, PCTFE, PFA and Titanium Outer Materials Aluminium, stainless steel and polyurethane (finiished with highly chemically resistant epoxy paint)
